AXI 5330/18 GOLD LINE V2
AXI 5330/18 GOLD LINE V2
Couldn't load pickup availability
TECHNICAL SPECIFICATION
| No. of cells | max. 10s Li-Poly |
| RPM/V | 259 RMP/V |
| Max. efficiency | 92% |
| Max. efficiency current | 25 - 60 A (>85%) |
| No load current | 1,9 A |
| Current capacity | 76 A/60 s |
| Internal Resistance | 19 mohm |

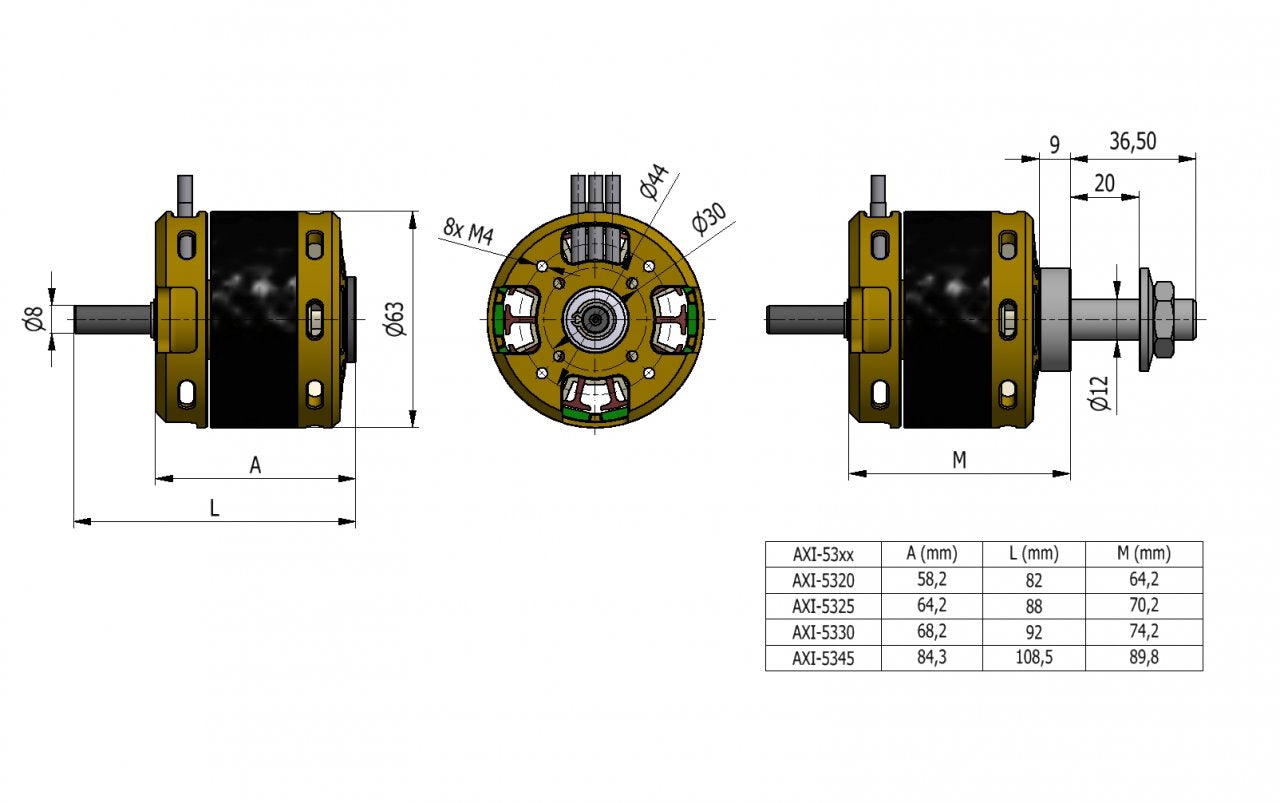

| Dimensions (∅ x L) | 63x68,2 mm |
| Shaft diameter | 8 mm |
| Weight | 672 g |
| Max. Power |
2870 W |
PRODUCT DESCRIPTION
These very efficient brushless motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials. The hardened steel 8mm shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. Due to it’s high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox. These motors are suitable for large sailplanes weighing up to 10000g and sports aerobatic models up to 7000g. The lack of gearbox noise makes these motors particularly suitable for scale models.
AXI53xx V2 motors offer front and reverse (radial) mounting options. Two prop adapters for both mounting options are included as standard. The AXI5330/18 V2 has been used in F3A competition aerobatics with great sucess.
BEST PRACTICES
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
6 500 | 229,3 | 10s | 80A/30s | 90A | 19"x10" |
 |
5 500 | 194,0 | 10s | 80A/30s | 90A | 20"x8" |
 |
16 000 | 564,4 | 10s | 80A/30s | 90A | 18,5"x12" |
 |
22 -25 ccm/1.3-1.55 -2stroke 1.4 -4stroke 35 - 45 ccm/2.1-2.7 gasoline | |||||
*Picture and photos for reference only
