| Specifications | |
| Current Consumption | 2.5 mA |
| Working Temperature Range | -5 to 50 °C, 23 to 122 °F |
| Dimensions | approx. 20 x 20 x 10 mm |
| Power Rating | 120 A continuous, 330 A peak |
| Effective Range (current) | 0.1 A to 300 A |
| Effective Range (voltage) | 5 V to 100 V (2s to 16s LiPo) |
| Resolution | 0.01 A / 0.01 V |
| Contents | |
| Device | Voltage/Current Sensor with connecting wires to battery and ESC |
| Connecting Wire | Sensor wire 500 mm |
| Accessories | |
| Connecting Wire 250 mm | 04898 |
| Connecting Wire 500 mm | 04899 |
| Battery ID Reader | 04907 |
| Battery ID Tags (10 pc.) | 04908 |
| Miscellaneous | |
| Miscellaneous | Extensive software support via VBar Control App |
Mikado

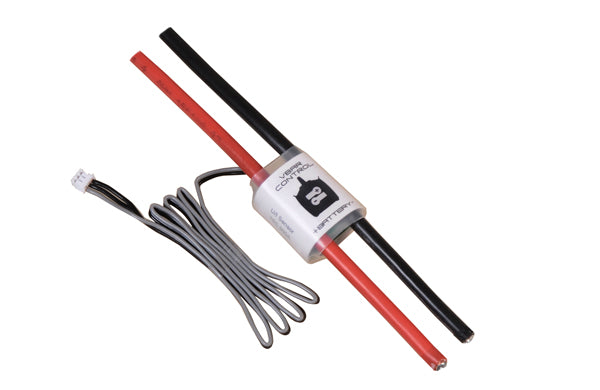

4890 Current/Voltage/Capacity Sensor, VBar Control
4890 Current/Voltage/Capacity Sensor, VBar Control
SKU: MIK4890
Regular price
$109.99
Regular price
$109.99
Sale price
$109.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Current/Voltage/Capacitysensor for VBar Control
Hardware Features of the Current/Voltage/Capacity Sensor for flight packs
- Individually precision calibrated
- Optocoupler
- Reverse battery protection
- No influence from motor or current carrying wires
Software Features
- Direct displaying from voltage and capacity
- Max. current and min. voltage storage
- Logfile data from the flight
- Battery Logbook with names
- Adjustable capacity, residual capacity and voltage for each battery
- Residual capacity is shown as bar in the radio display
- Overdischarge Warning
- Warning at use of not fully charged batteries
- Loud speaker announcement for reducing battery capacity
Notes
- Requires a VBar with Spektrum Satellite connectors (telemetry bus for VBar Control)
- Not suitable for measuring receiver packs only (e.g. on a nitro heli)
- extracted capacities are not added up, measurement only on a per-flight basis
