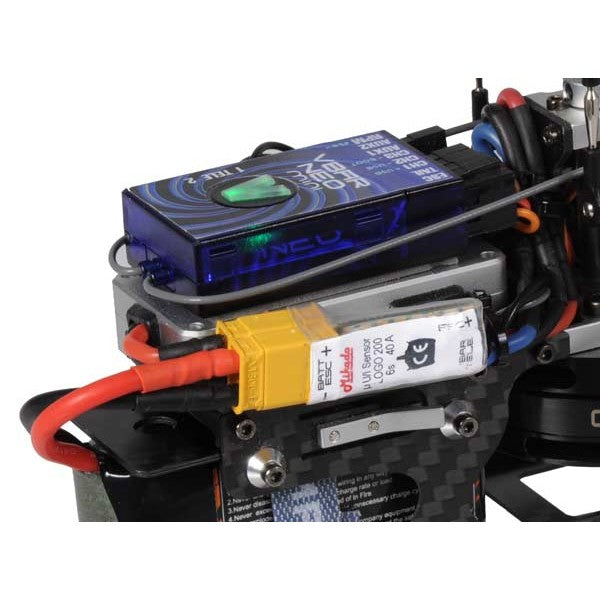

5492 Mikado Current/Voltage/Capacity Sensor, LOGO 200
5492 Mikado Current/Voltage/Capacity Sensor, LOGO 200
SKU: MIK5492
Regular price
$71.99
Regular price
$71.99
Sale price
$71.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MIK5492 Current/Voltage/Capacity Sensor, LOGO 200
Description
Current/Voltage/Capacitysensor for VBar Control
Hardware Features of the Current/Voltage/Capacity Sensor for flight packs
- Plug & play version with XT30 connectors and sensor wire, perfect fit for LOGO 200
- No influence from motor or current carrying wires
- Sensor wire attached
Software Features
- Direct displaying from voltage and capacity
- Max. current and min. voltage storage
- Logfile data from the flight
- Battery Logbook with names
- Adjustable capacity, residual capacity and voltage for each battery
- Residual capacity is shown as bar in the radio display
- Overdischarge Warning
- Warning at use of not fully charged batteries
- Loud speaker announcement for reducing battery capacity
Notes
- Requires a VBar with Spektrum Satellite connectors (telemetry bus for VBar Control)
- extracted capacities are not added up, measurement only on a per-flight basis
Product data
| Specifications | |
| Current Consumption | 6 mA |
| Working Temperature Range | 0 to 45 °C, 32 to 113 °F |
| Dimensions | approx. 34 x 12 x 12 mm |
| Power Rating | 40 A |
| Effective Range (current) | 0.1 A to 40 A |
| Effective Range (voltage) | 5 V to 25 V (2s to 6s LiPo) |
| Resolution | 0.01 A / 0.01 V |
| Contents | |
| Device | Voltage/Current Sensor with XT30 connectors to battery and ESC |
| Connecting Wire | Sensor wire (attached) |
| Accessories | |
| Battery ID Reader | 04907 |
| Battery ID Tags (10 pc.) | 04908 |
| Miscellaneous | |
| Miscellaneous | Extensive software support via VBar Control App |
Download
*Photos and Pictures for reference only
